Overview
Quick Details
Condition:
New
Type:
Pipe Welding Machine
Pipe Material:
Carbon Steel
Application:
Energy Supply Pipe
Production Capacity:
30-80m/min
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
GH
Model Number:
ZG60
Voltage:
220/380/415/420/440V
Power(W):
290kw
Dimension(L*W*H):
55m84.5m
Weight:
10 Tons
Certification:
CE ISO
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
welding Pipe Making Machine
Pipe shape:
round and square
Product name:
Tube Welding Machine
Raw material:
Stainless Steel Coils
Color:
Blue
Material:
Stainess Steel
Item:
High Frequency Welded Pipe Mill
Pipe diameter:
19.05~76.2mm
Thickness:
0.8~3.0mm
Usage:
Construction Pipe
Supply Ability
Supply Ability:
5 Set/Sets per Month

Packaging & Delivery
Packaging Details
Suitable for ocean
Port
Shanghai port
Lead Time :
120 days

.richtext [data-maya] { font-size:14px; }

Product Description



1. Description

This equipment is specially used for producingΦ19.05-Φ76.2mm, δ0.8-3.0mm high-frequency straight seam welded pipe and corresponding square pipe and special-shaped pipe(δ≤2.5mm). The composition of equipment is from uncoiler to fixed length cutting saw. Rolling speed can be adjusted correspondingly within suitable range of pipe diameter and wall thickness.



2. Applicable material:

(1)   Hot or cold-rolled steel strip (As per GB708-88 or GB1591-88)

(2)   Material: Low-carbon steel, low alloy steelδs345Mpa, δb610Mpa

(3)   The thickness of steel strip: 0.8-3.0mm (As per GB708-88)

(4)   The width of steel strip: 60-240mm

(5)   I.D. of steel coil: Φ450-Φ550mm

(6)   O.D. of steel coil: Φ800-Φ1200mm

(7)   Maximum weight coil: 3000kgs



3. Dimension range of processing steel tube:

(1)   O.D.: Φ19.05-Φ76.2mm

(2)   Square pipe size:   18×18~60x60mm

(3)   rectangle pipe size:15×20~40x80mm

(4)   Wall thickness: 0.8-3.0mm(square pipe and special-shaped pipeδ≤2.5mm)

(5)   Length: 4-8m

4. Milling speed: 30-80M/min(choose different speed as per different pipe diameter and thickness)



5. Product (steel tube) process flow:

Raw material (steel coil) → uncoiling → shearing and end welding → material accumulating → non-power leveling → mill-forming → high-frequency welding → removing burrs outside of weld seam → cooling → sizing → roughly straightening → fixed length cutting → finishing tube

6. Advised user’s necessary accessories (only for reference):

 (1) Mechanical equipment site: 55m×4.5m (length × width)

(2) Electrical equipment site: 5m × 4m (length × width)

(3) Machine unit foundation base (See supplier’s base drawing)

(4) Two sets of 10-ton overhead crane

(5) Power supply:

a. Equipment motor: 3KW+ 200KW+18.5KW+22KW+22KW+22KW=287.5KW

 b. Solid-state high-frequency welder: 250 KW

(6) Saw blades for tracking saw, specification as per instruction book and quantity as per customer need.

(7) Magnetic bar for welding pipe, purchase as per pipe making size.

(8) One set of Φ3", 32m high-pressure pumps for pipe-welding machine cooling.

(9) One set of cooling water pool for pipe-making machine, the volume 30 m3 with water pipe, water pressure meter and valve. (Decide size and quantity when installation on site, purchase from market)

(10)  Machine unit electric circuit. Before assembling, circuit must reach the electric cabinet of high-frequency room. Electric connection for high-frequency room to overall control table and button station. (Decide size and quantity when installation on site, purchase from market)

(11)  High-frequency room for machine unit. Adopting ground or attic according to customer’s layout.

 (12) Lifting equipment and tooling for installing machine, maximum weight of one part is 10 tons.

Brand name of components:

  Pneumatic component: AIRTAG(Joint venture)

  AC motor: SIEMENS BEIDE(Joint venture)

  DC motor: HENGLI (Made in China)

  Frequency changer: ABB(Joint venture)

  Controller of flying cutting saw: YASKAWA(Joint venture)

ms erw pipe making machine
ms erw pipe making machine
ms erw pipe making machine

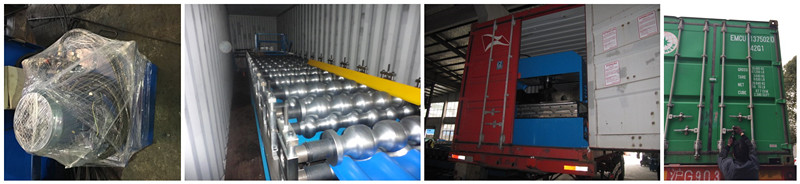

Packaging & Shipping
