slitting and cut to length line

Short Description:


Product Detail

Product Tags

Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
GH
Model Number:
slitting
After-sales Service Provided:
Engineers available to service machinery overseas
Raw materials:
Steel
Color:
Blue
Supply Ability
Supply Ability:
5 Set/Sets per Month
Packaging & Delivery
Packaging Details
suitable for sea shipping.
Port
shanghai
Lead Time :
50days
Product Description
                                                               Slitting Line(Only for reference)

The line includes in decoiler, guiding device, slitting device, cutting device, length measure device, extension device, re-coiler, hydraulic station and PLC controlling system.

Material: (0.17-0.5mm)X1250mm, color steel GI steel

If you have your own special requirements,our machine can be also customized.
Whole machine:

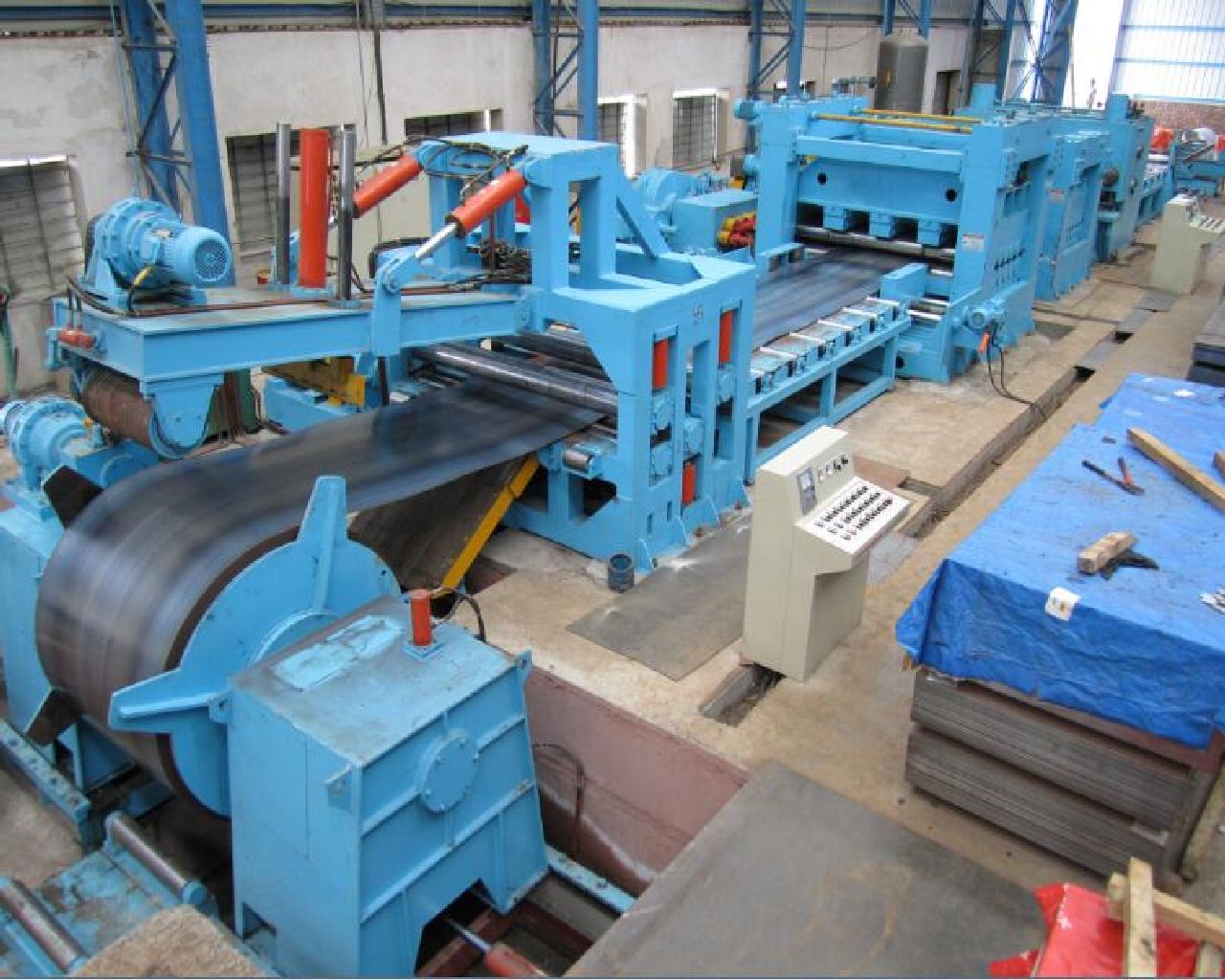

The production flow of equipment:

Hydraulic decoiler→slitting →extension →recoiler

Detailed Images

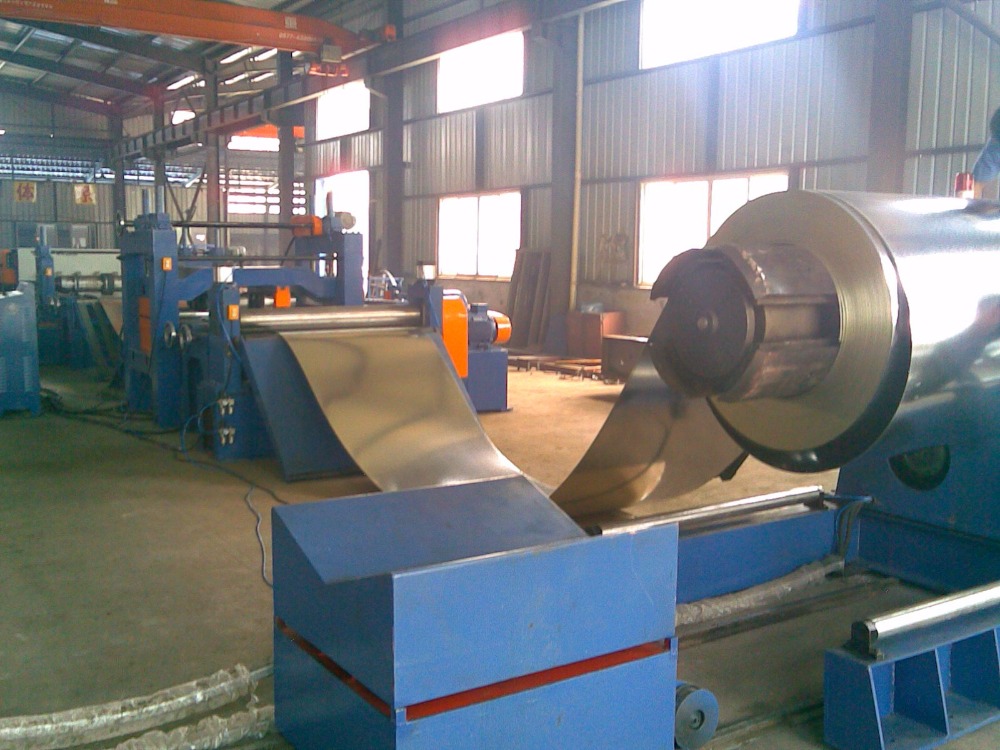

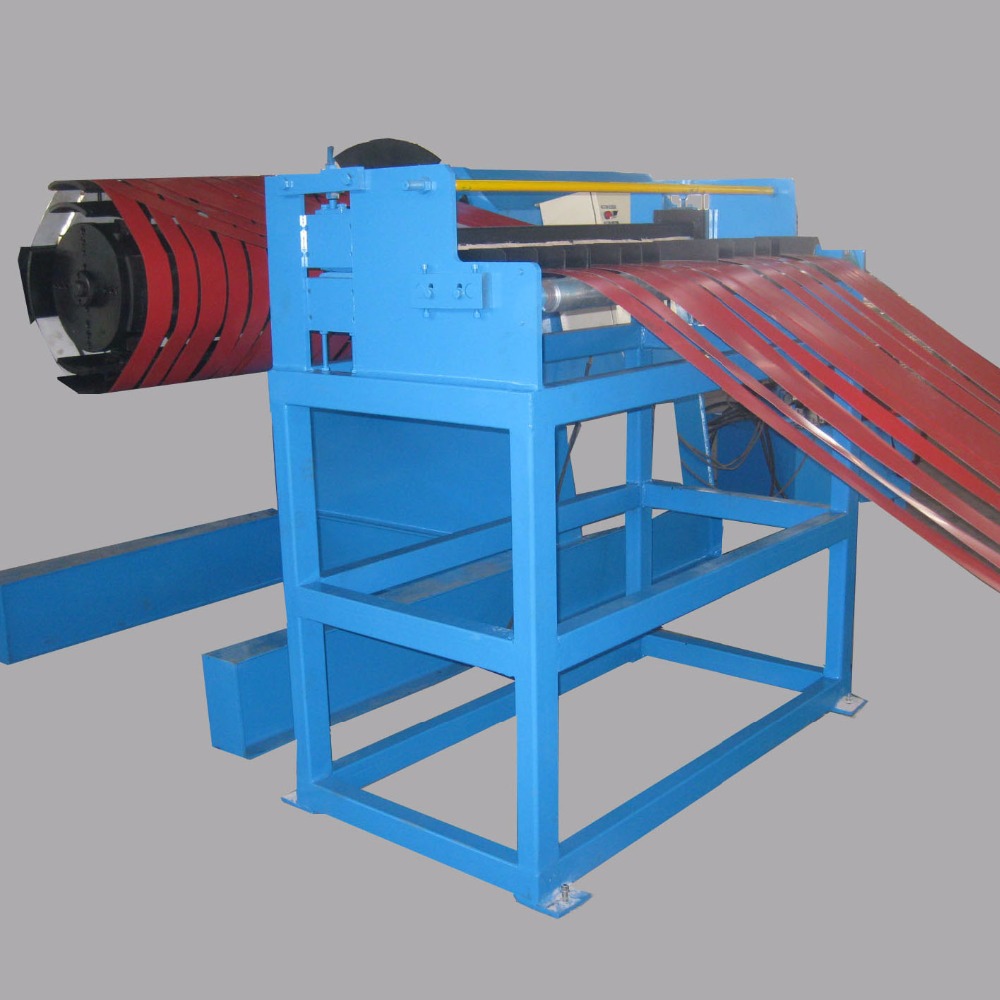

5T hydraulic decoiler:

Steel coil width: from 1000 mm to 1250 mm;
Internal diameter of coil: variable, from 480 mm to 530 mm
Maximal out diameter:2000mm
Maximum coil weight: 5000 Kgs;
Oil cylinder dia:120mm
Working speed: 0-15m/min adjustable
Main motor power: 5.5KW AC motor
Hydraulic power: 4kw
Speed controlled by frequency converter brand: Yaskawa

Guide&leveling devoice

7 rollers, 3 for up, four for down

Leveling rollers diameter:56¢

Material of rollers: ASTM1045 with chrome

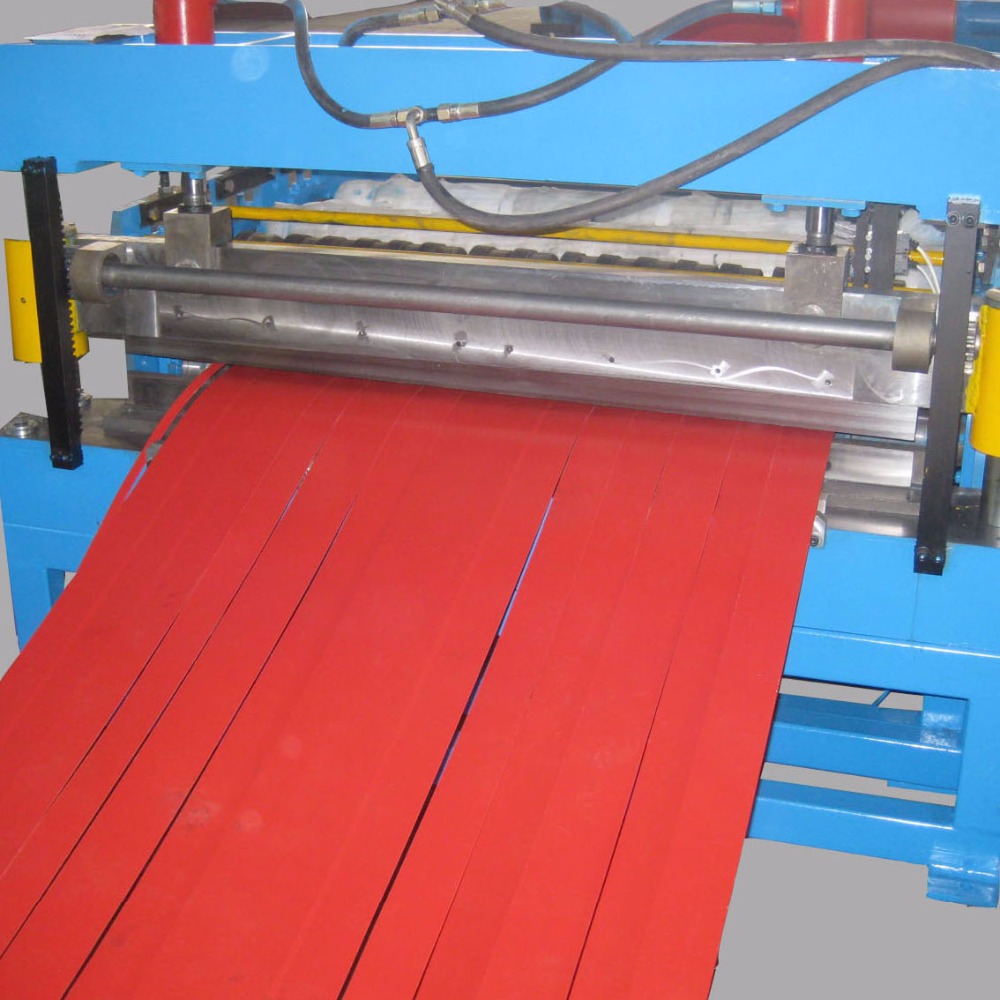

slitting device

Slitting speed: 0-15mm/min
Driving motor: 5.5KW
Slitting shaft diameter: Ф100mm
Slitting blade: 9 pieces
Max slitting pieces: 10pieces
Min slitting width: 50mm
Width tolerance:±0.5mm
Slitting blade material: Cr12 with heat treatment
Pinching station: 2 stations

cut to length device

Cutting thickness:0.17—0.5mm
Cutting length:500-4000mm
Cutting speed: 4-5pcs/min (2000mm per pc)
Cutting width:less than 1250mm
Cutting speed:4-5pcs/min (2000mm per pc)
Cutting station power: 5.5Kw.
Width tolerance:±0.5mm per pc
This part is with one of 2 meters out table for take the cut pieces

Extension device

Which is in front of re-coiler and mounted with re-coiler together, it extension the sheet so can wind a tight coil; also it has partition to divide the sheet separately.Color: Blue (or base on customer request)Quantity: 1

Hydraulic station:

Hydraulic power: 4kw
Working pressure:12-16Mpa adjustable
Solenoid valve: 1 group
Hydraulic oil: 46# hydraulic oil
Color; Blue (or base on customer request)
Quantity :1



Control carbinet:

1)Programmable setting of profile length and quantity
2)Automatic stopping of the equipment after completion of the cutting programme.

3)Operating system language: English and Chinese

4)Computer used to control length & quantity. Machine will automatically cut tolength and stop when required quantity is achieved
5)PLC brand: Panasonic
6)Frequency converter brand: Yaskawa, quantity: 1
7)Touch screen: Taiwan Weinview
Package&Delivery
Our Service

Enginer to test machine for clients.

Clents learning to check the products.
